In Stock

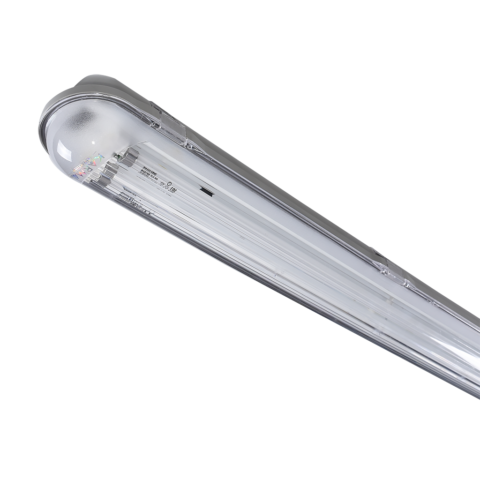

WATERPROOF – 2x T5 Fluorescent Armature

We produce T5 fluorescent lamp waterproof luminaire with asymmetrical diffuser cover as an industrial lighting solution suitable for outdoor installation.
It has been strengthened to be used in high ceiling application areas to meet the need for more light with 2x T5 fluorescent lamps.

At low pressure, we have made it robust to adapt to temperature changes, so it can be used for a long time without maintenance.
Resistant to moisture, water and moderate heat and light bursts.
The body and diffuser made of polycarbonate (PC) are resistant to deformation and impacts.
It is suitable for use in warehouses, cold stores, industrial kitchens, indoor and outdoor areas.
Included in IP65 protection class.

Usage Areas

Materials / Finishes

Materials / Finishes
Diffuser Clear polycarbonate (PC), UV resistant, shockproof
Cable glands Rubber
Cap Gasket EPDM
Reflector Modified DKP sheet for indirect lighting, white color
Body Transparent polycarbonate (PC), UV stable, impact resistant

Product Mounting Details

Product Mounting Details
Mounting Surface Surface mounted
Mounting Type Stainless steel ceiling mount or pendant rod in various optional lengths.
Mounting accessories Stainless spring steel ceiling bracket or Adjustable steel wire hanger (TIJ) (optional).
Mains Connection 3x cable terminals

Electrical Equipment

Electrical Equipment
Light Source OSRAM or Philips T5 Fluorescent Tube Bulb.
Automation Mains input can be controlled by panel or external control modules.
Emergency Lighting EMERGENCY KIT with internal 1-3 hours battery (optional)
Driver-Balast Electronic Ballast (EVG)
Sensor Motion sensitive, sound sensitive trigger sensors (optional)
DALI - DIMM not applicable.

Product Labels

WATERPROOF – 2x T5 Fluorescent Armature Accessories

Dimensions - Technical Drawings WATERPROOF – 2x T5 Fluorescent Armature Light Curves

Check out the details that explain what you can do from this data.


WATERPROOF – 2x T5 Fluorescent Armature

We provide luminance (IES) curves for each luminaire on our website.
The light curve graphically shows how the light diffuses into the space.
The light source is located at the center of the system (ie in the polar area of the graph).
When the fixture assembly is symmetrical about the vertical axis (such as circle-round, square), we create only one density distribution curve in a vertical plane.
So the red color appears, when the Armature assembly is not symmetrical, we add a blue curve to the graph.
The blue curve shows how the light source shines with a 90 degree movement against the initial position.
When measuring the luminaire inside the source axis, we measure the plane C90-C270; when measuring the light axis vertically, we measure the plane C0-C180.

WATERPROOF – 2x T5 Fluorescent Armature
  • The given brightness values are measured by Goniophotometer.
  • In the KARMA laboratory (compared to accredited organizations)
  • we measure our luminaires ourselves and record the luminaire output (.IES/.LDT).
  • So you can be sure that the luminaire illuminates as shown.
60-606222x28 W1270x130x90 mmŞEFFAFT16-TL52 Kg
60-606242x35 W1570x130x90 mmŞEFFAFT16-TL52 Kg
60-606252x49 W1570x130x90 mmŞEFFAFT16-TL53 Kg

You may want to review these products;

This product/s: Communiqué on energy labeling of light sources (2019/2015/EU) (sgm:2021/12), Communiqué on environmentally friendly design requirements of light sources and separate control equipment (2019/2020/EU) ( In accordance with sgm:2021/11), it has been deemed appropriate for our Company to REMOVE IT FROM PRODUCTIONbefore the scope of the notification, and to produce alternative and more efficient products Products” You can choose it by getting professional support from the section or the contact section.
