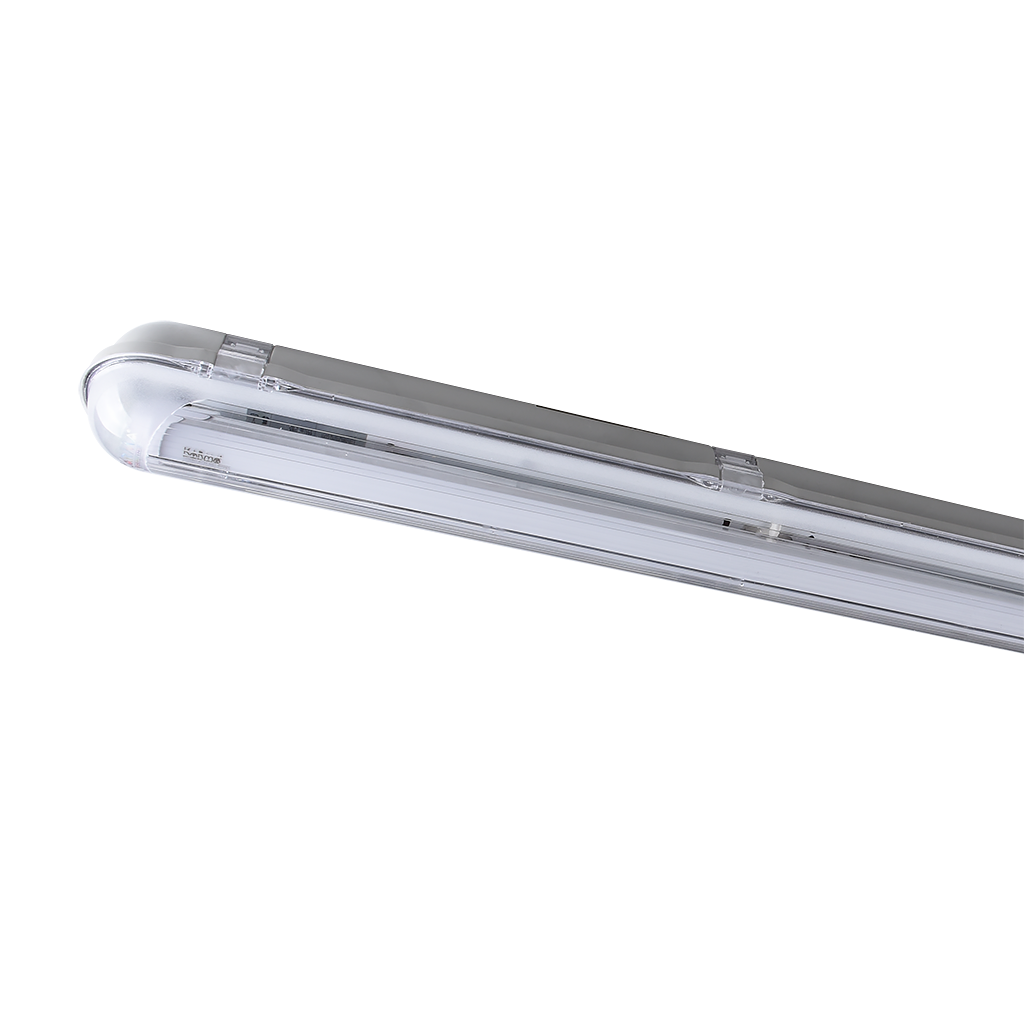

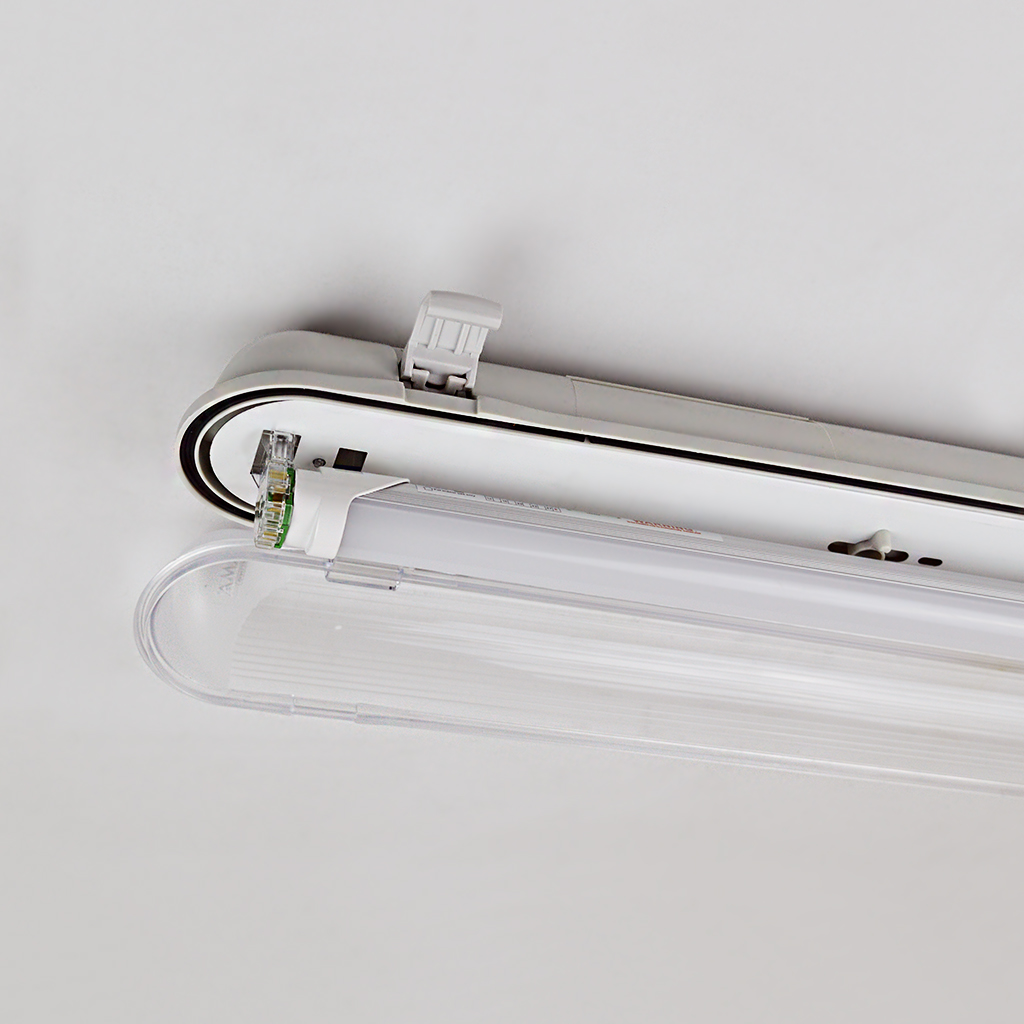

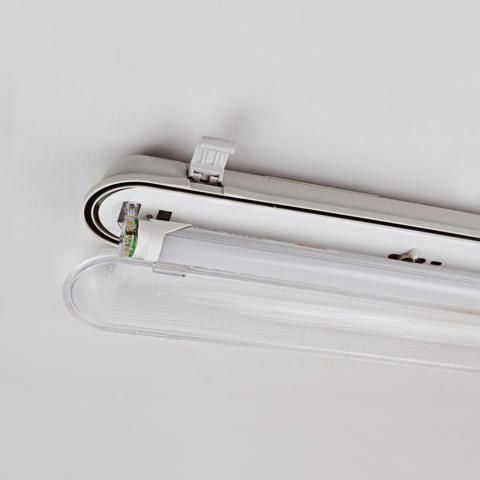

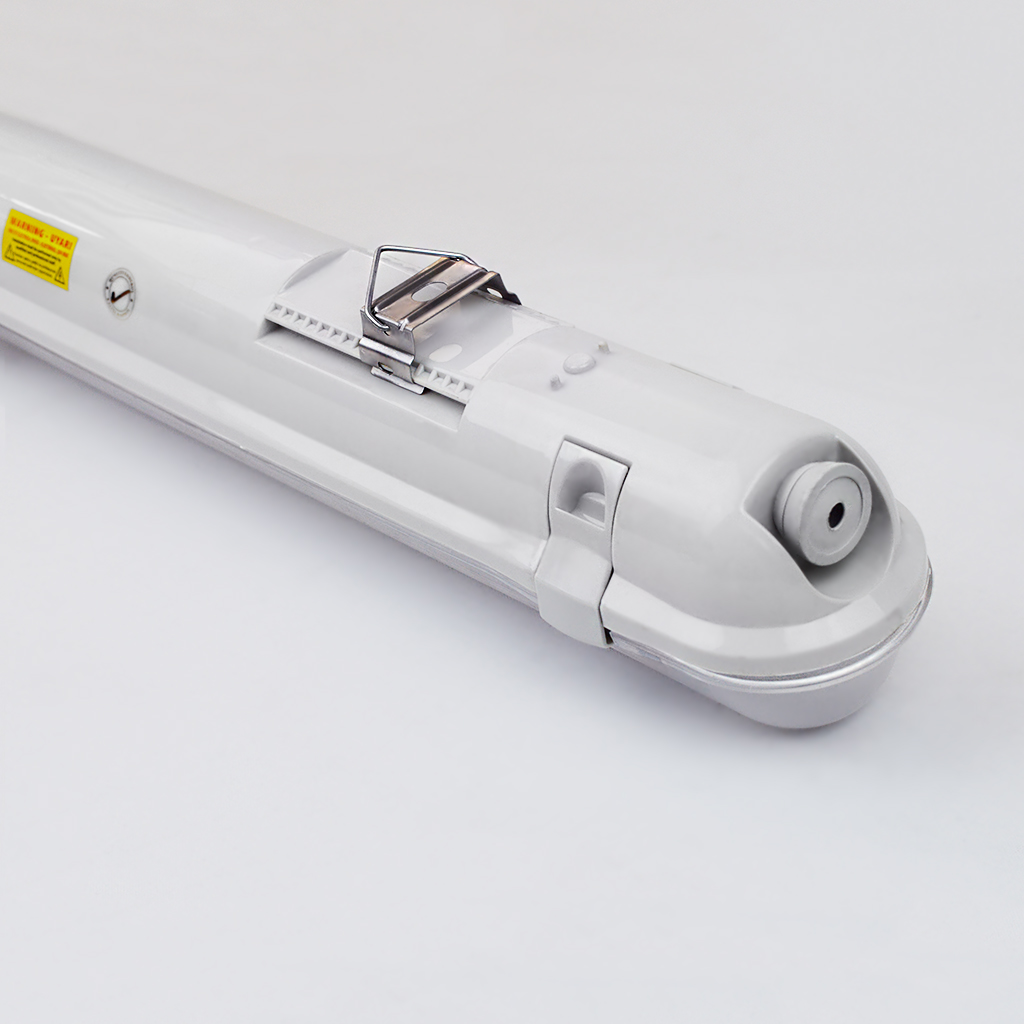

T8 LED Waterproof Luminaire

T8 type LED Tube Waterproof luminaire with asymmetric Polycarbon Diffuser cover is an industrial lighting solution suitable for outdoor installation.

At low pressure, we have made it robust to adapt to temperature changes, so it can be used for a long time without maintenance.
The body made of Polycarbonate (PC), resistant to moisture, water and moderate heat and light bursts, is resistant to deformation and impacts.

Adopted to the new generation LED technology by sticking to the classical T8 fluorescent tube dimensions, U type watertight is suitable for use in general-purpose warehouses, cold storages, clean rooms, industrial kitchens, indoor and outdoor areas.
T8 type LED tubes offer an easy transition to technological developments compared to easily replaceable fixed LED module lighting.

  • Product Code:
  • Price :
  • 65-65301

Usage Areas

Materials / Finishes

Materials / Finishes
Diffuser Clear polycarbonate (PC), UV resistant, shockproof
Cable glands Rubber
Cap Gasket EPDM
Reflector Modified DKP sheet for indirect lighting, white color
Body Polycarbonate (PC), UV stable, impact resistant
Lamp T8 LED Tube

Product Mounting Details

Product Mounting Details
Mounting Surface Surface Mounted / Suspended
Mounting Type Stainless steel ceiling mount or pendant rod in various optional lengths.
Mounting accessories Stainless spring steel ceiling bracket or Adjustable steel wire hanger (TIJ) (optional).
Mains Connection 3x cable terminals

Electrical Equipment

Electrical Equipment
Light Source KARMA T8 LED tube
Automation Mains input can be controlled by panel or external control modules.
Emergency Lighting EMERGENCY KIT with internal 1-3 hours battery (optional)
Sensor Motion sensitive, sound sensitive trigger sensors (optional)
DIMM not applicable.

Product Labels

T8 LED Waterproof Luminaire Accessories

Dimensions - Technical Drawings T8 LED Waterproof Luminaire Light Curves

Check out the details that explain what you can do from this data.


T8 LED Waterproof Luminaire

We provide luminance (IES) curves for each luminaire on our website.
The light curve graphically shows how the light diffuses into the space.
The light source is located at the center of the system (ie in the polar area of the graph).
When the fixture assembly is symmetrical about the vertical axis (such as circle-round, square), we create only one density distribution curve in a vertical plane.
So the red color appears, when the Armature assembly is not symmetrical, we add a blue curve to the graph.
The blue curve shows how the light source shines with a 90 degree movement against the initial position.
When measuring the luminaire inside the source axis, we measure the plane C90-C270; when measuring the light axis vertically, we measure the plane C0-C180.

T8 LED Waterproof Luminaire
  • The given brightness values are measured by Goniophotometer.
  • In the KARMA laboratory (compared to accredited organizations)
  • we measure our luminaires ourselves and record the luminaire output (.IES/.LDT).
  • So you can be sure that the luminaire illuminates as shown.
Product CodeWattProduct Size
L,W,H (mm)
Product Weight
65-653011x9 W670x90x90 mm0,9 Kg
65-65301-H11x9 W670x90x90 mm1,4 Kg
65-653051x16 W1270x90x90 mm1 Kg
65-65305-H11x16 W1270x90x90 mm1,5 Kg
65-653061x19 W1270x90x90 mm1 Kg
65-65306-H11x19 W1270x90x90 mm1,5 Kg
65-653071x19 W1570x90x90 mm1 Kg
65-65307-H11x19 W1570x90x90 mm1,5 Kg
65-653251x27 W1570x90x90 mm2 Kg
65-65325-H11x27 W1570x90x90 mm2,5 Kg
