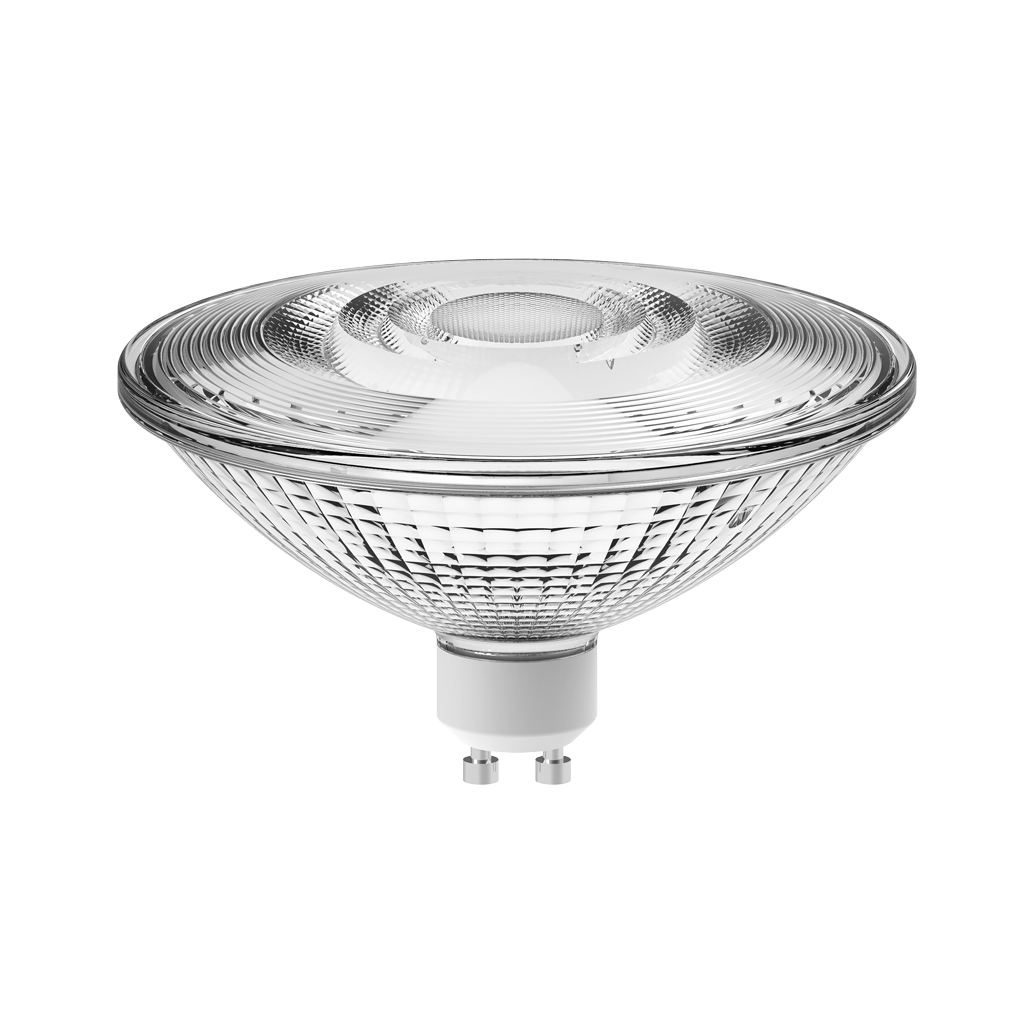

SYLVANIA – RefLED Retro ES111 GU10 LED Bulb

The state-of-the-art LED ES111 lamp from Sylvania Lighting combines the unique look and feel of a traditional Halogen ES111 lamp with modern LED performance. Thanks to its all-glass design, it offers a perfect integration between the lamp and the luminaire without any color mismatch.

This lamp, which draws attention with its high lumen output (1150 lm), minimizes the glare effect thanks to its dotted lens, while successfully recreating the halogen light effect. The 25° beam angle precisely determines the lighting focal point, providing an environmentally friendly option with 87% energy savings.

Its dimmable feature allows you to adjust the lighting to suit your desired atmosphere. Its long life of 25,000 hours means that it lasts 12.5 times longer than halogen alternatives, while > It proves its durability with 100,000 switching cycles.

Its superior lumen efficacy (89 lm/W) and CRI 80 color rendering help illuminate your spaces with vibrant and natural light. With the quality and assurance of Sylvania, the LED ES111 lamp is the ideal option to meet your modern lighting needs and save energy.

It offers an ideal solution for replacing traditional halogen lamps that have expired.

  • Product Code:
  • Price :
  • 06-1044

Usage Areas

    Features

    Features
    Product name RefLED Retro ES111 1150LM DIM 830 25SL
    Technology LED
    Type LED replaceable
    ETIM Class EC001959
    E-number FI4741074
    Color temperature (K)3000
    Light colorWarm White
    CRI (Ra)80
    Initial Color Change (SDCM)SDCM6
    Color Consistency (SDCM)6
    Beam Angle (°)25
    Photobiological Risk GroupRG1
    Power (W)13
    Product Voltage (V)230
    Dimmable Yes
    Average life (Nominal) (h)25000
    Product EAN number5410288291925
    Warranty 3 years
    Color temperature (K)3000
    Light colorWarm White
    CRI (Ra)80
    Initial Color Change (SDCM)SDCM6
    Color Consistency (SDCM)6
    Luminous Intensity (cd) 3200
    Beam Angle (°)25
    Photobiological Risk GroupRG1
    Lumen maintenance at end of rated life (%)70

    Electrical Equipment

    Electrical Equipment
    Power (W)13
    Power Factor >0.9(λ)
    Equivalent watts (W)140
    Product Voltage (V)230
    Driver Not required
    Number of switching cycles before early failures>100000
    Transformer required No
    Dimmable Yes
    Inrush Current (A)2.3
    Takeoff Time (µs) 110
    Lamp Energy Label (class)F
    Max. 16A C Number of Armatures per Breaker 182
    Max. Number of Fixtures per 16A B Breaker 182

    Dimensions - Technical Drawings SYLVANIA – RefLED Retro ES111 GU10 LED Bulb Light Curves
    More..

    Check out the details that explain what you can do from this data.

    DETAILS

    SYLVANIA – RefLED Retro ES111 GU10 LED AMPUL

    Web sitemizdeki her bir armatür için parlaklık (IES) eğrileri sunarız.
    Işık eğrisi, ışığın alana nasıl yayıldığını grafiksel olarak gösterir.
    Işık kaynağı, sistemin merkezinde bulunur(yani grafiğin kutup alanında).
    Armatür montajı dikey eksen etrafında (daire-yuvarlak, kare gibi) simetrik olduğunda, bir dikey düzlemde yalnızca bir yoğunluk dağılım eğrisi oluşturuyoruz.
    Yani kırmızı renk görünür, Armatür montajı simetrik olmadığında, grafiğe mavi bir eğri ekleriz.
    Mavi eğri, ışık kaynağının ilk pozisyona karşı 90 derecelik hareketle nasıl parladığını gösterir.
    Kaynak ekseni içindeki armatürü ölçerken, C90-C270 düzlemini ölçüyoruz; Işık eksenini dikey olarak ölçerken de C0-C180 düzlemini ölçeriz.

    SYLVANIA – RefLED Retro ES111 GU10 LED Bulb
    • Verilen parlaklık değerleri Gonyofotometre ile ölçülür.
    • KARMA laboratuvarında (akredite kuruluşlarla karşılaştırmalı olarak)
    • armatürlerimizi kendimiz ölçeriz ve ışıklık çıktısını (.IES & .LDT dosyası) kayıt ederiz.
    • Dolayısıyla armatürün gösterildiği gibi aydınlattığından emin olabilirsiniz.
