Mini-Line – T5 Linear Band LED Luminaire - mini-line-connect

Mini-Line – T5 Linear Band LED Luminaire - mini-line-armatur

Mini-Line – T5 Linear Band LED Luminaire

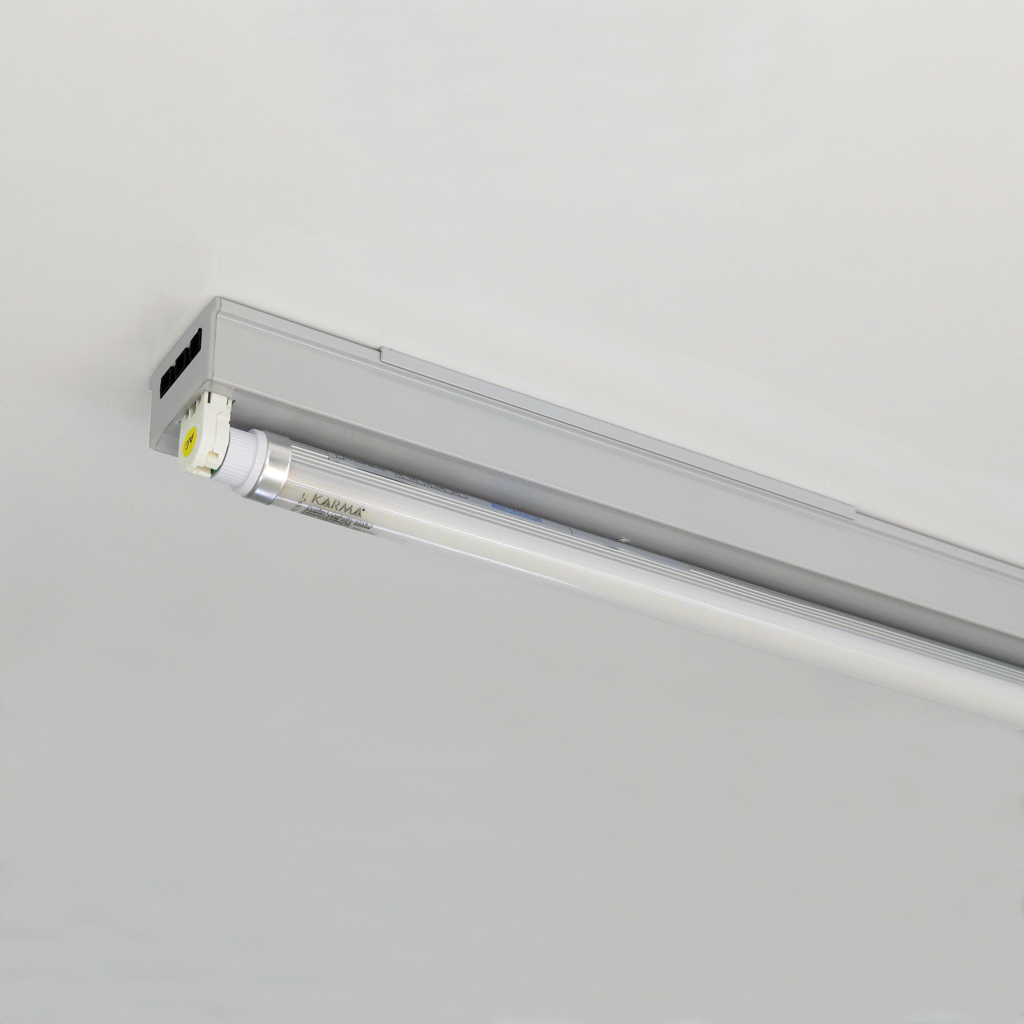

The most economical linear band type lighting fixture of the Mini-Line® T5 LED Tube product series; It has an almost unlimited mounting structure.

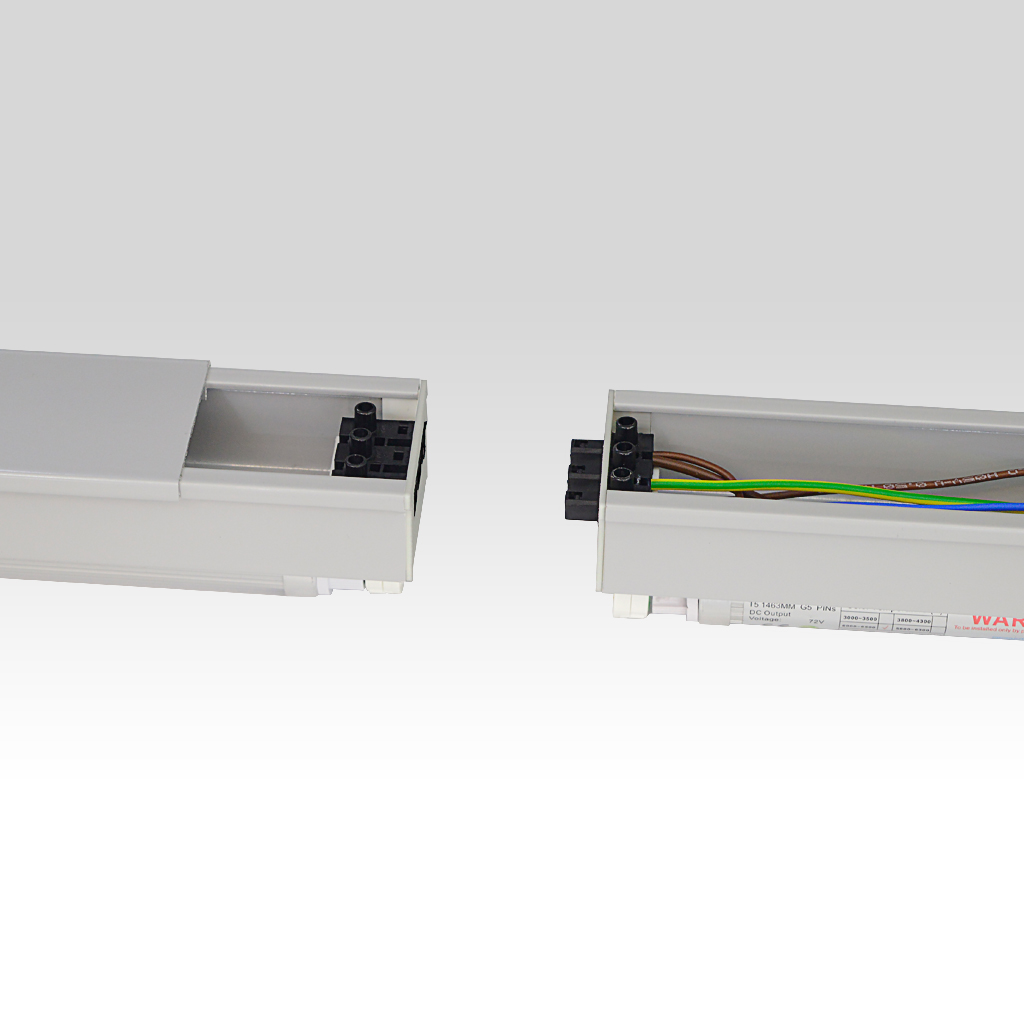

It can be produced in one piece up to 3 meters, it has an aluminum extrusion Trunk body structure for optional cable connections for pass-through and skip controls.

The applied space can also be produced with various color options to suit the decoration.

Product Code:
Price :
35-45010-S

CCT/KELVIN:
3000 3000 KELVIN
4000 4000 KELVIN
6000 6000 KELVIN

Body Colors:
Black (RAL:9005)
Anthracite (RAL:7043)
Metal - Gray (RAL:9006)
White (RAL:9016)

Beam Angle:
100° Derece

Usage Areas

Files

Features

EU EcoDesign Compliant (EEC) - 2019/2020 EU

Features
Power	1x10 W - 2x(1x27 W)
Luminous Flux	1.450 Lm - 8.532 Lm
Efficiency	138 Lm/W - 161 Lm/W
Energy Label	B - C
Color Rendering Index(CRI)	>80 Ra
Led Product Life	54,000 h - 63,000 h
Driver	Internal Driver
Standard Deviation Color Matching (SDCM)	MacAdam3
Lamp Type	T5 LED Tube
Power Factor (PFλ)	>95
Emergency Lighting Power	3w (+10-15%)
IEC Protection Class (Luminaire)	CLASS (I)
Size	595mm - 2950mm
IP - Protection Class	IP20
Mounting Type	Surface Mounted, Pendant
Application Height	2.5m - 4m
Operating Temperature (At Room Temperature)	-20°C...+50°C
Temperature Range in Storage	-30°C...+70°C
Body Material	Aluminum Extrusion
Protection Class IK (Shock Resistance)	IK 08
HI1, HI3 Emergency Kit Option is Available.
Values Given Are Valid for the Model Measured

Materials / Finishes

Materials / Finishes
Body Material	Aluminum Extrusion
Body Color Options	Black (RAL 9005), White (RAL 9016), Metal-Gray (RAL 9006), Anthracite (RAL 7043)
Product Paint	Electrostatic Powder Coating and Anodizing
Diffuser	Polycarbonate (PC) Opal, Polycarbonate (PC) Transparent

Product Mounting Details

Product Mounting Details
Mounting Options	Stainless Spring Steel Ceiling Connection or Suspension at Desired Length
IP - Protection Class	IP20
Mounting Type	Surface Mounted, Pendant
Installation Location	Ceiling
Mains Connection	3x1 Monophase Grounded Connection
Application Height	2.5m - 4m
Protection Class IK (Shock Resistance)	IK 08

Electrical Equipment

Electrical Equipment
Input Voltage, Frequency	100~240 AC/V 50~60 Hz
Lamp Type	T5 LED Tube
Power Factor (PFλ)	>95
Emergency Lighting	Internal 1-3 Hours Battery Emergency Kit (Optional), Emergency Lighting Led Tube Internal 1-3 Hours (Optional)
Emergency Lighting Power	3w (+10-15%)
IEC Protection Class (Luminaire)	CLASS(I)
Sensor	Motion & Sound Sensitive Sensor (Optional)
Automation	Mains Input Can Be Controlled by Panel or External Control Modules
Light Power Adjustment (DIMM)	No

Product Labels

armature, 3000-6000 kelvin, ip20, tape type, led, linear led luminaire, linear system, market lighting, ecoline, lighting, led tube, market, t5, shopping centre, office lighting, surface mounted, led tube, food lighting, linear, linear lighting fixture, t5 led luminaire, market lighting systems, t5 led, band armature, market lighting fixtures, Market lighting systems, t5 luminaire, T5 armature frame, T5 Band Luminaire, T5 Led Band Luminaire, T5 Led Fluorescent

Mini-Line – T5 Linear Band LED Luminaire Accessories

Dimensions - Technical Drawings

Mini-Line – T5 Linear Band LED Luminaire

Light Curves

More..

Check out the details that explain what you can do from this data.

DETAILS

Mini-Line – 1x T5 Linear Band Armature

We provide luminance (IES) curves for each luminaire on our website.
The light curve graphically shows how the light diffuses into the space.
The light source is located at the center of the system (ie in the polar area of the graph).
When the fixture assembly is symmetrical about the vertical axis (such as circle-round, square), we create only one density distribution curve in a vertical plane.
So the red color appears, when the Armature assembly is not symmetrical, we add a blue curve to the graph.
The blue curve shows how the light source shines with a 90 degree movement against the initial position.
When measuring the luminaire inside the source axis, we measure the plane C90-C270; when measuring the light axis vertically, we measure the plane C0-C180.

Product Code	Watt	Efficiency (Lm/W)	Luminous flux (Lm)	Size L,W,H (mm)	Weight (Kg)
35-45010-S	1x10 W	145 Lm/W	1.450 Lm	595x55x55 mm	0,354 Kg
35-45015-S	1x15 W	145 Lm/W	2.175 Lm	1175x55x55 mm	0,881 Kg
35-45019-S	1x19 W	145 Lm/W	2.755 Lm	1475x55x55 mm	0,881 Kg
35-45020-S	2x(1x19 W)	145 Lm/W	5.510 Lm	2950x55x55 mm	1,762 Kg
35-45022-S	1x22 W	142 Lm/W	3.124 Lm	1475x55x55 mm	0,881 Kg
35-45023-S	2x(1x22 W)	142 Lm/W	6.248 Lm	2950x55x55 mm	1,762 Kg
35-45027-S	1x27 W	138 Lm/W	3.726 Lm	1475x55x55 mm	0,881 Kg
35-45028-S	2x(1x27 W)	138 Lm/W	7.452 Lm	2950x55x55 mm	1,762 Kg
35-45035-S	1x35 W	132 Lm/W	4.620 Lm	1475x55x55 mm	0,881 Kg
35-45010-G	1x10 W	161 Lm/W	1.610 Lm	595x55x55 mm	0,354 Kg
35-45015-G	1x15 W	161 Lm/W	2.415 Lm	1175x55x55 mm	0,881 Kg
35-45019-G	1x19 W	161 Lm/W	3.059 Lm	1475x55x55 mm	0,881 Kg
35-45020-G	2x(1x19 W)	161 Lm/W	6.118 Lm	2950x55x55 mm	1,762 Kg
35-45022-G	1x22 W	159 Lm/W	3.498 Lm	1475x55x55 mm	0,881 Kg
35-45023-G	2x(1x22 W)	159 Lm/W	6.996 Lm	2950x55x55 mm	1,762 Kg
35-45027-G	1x27 W	158 Lm/W	4.266 Lm	1475x55x55 mm	0,881 Kg
35-45028-G	2x(1x27 W)	158 Lm/W	8.532 Lm	2950x55x55 mm	1,762 Kg
35-45035-G	1x35 W	145 Lm/W	5.074 Lm	1475x55x55 mm	0,881 Kg

These product(s): Due to falling behind the structural features suitable for the advantages provided by technological developments, "REMOVED FROM PRODUCTION" We continue to provide spare parts for the products currently under warranty until the last product on the market expires. We will. You can choose it by getting professional support from the ” section.
