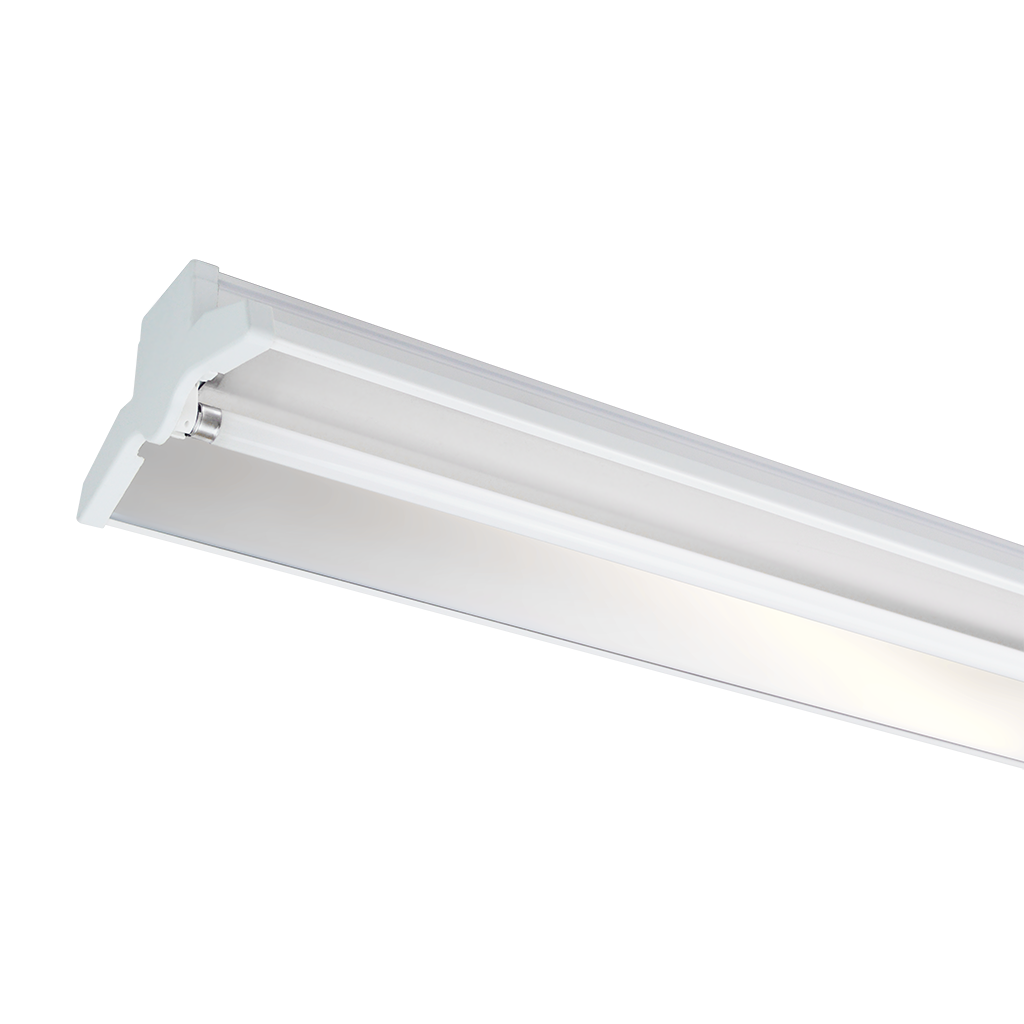

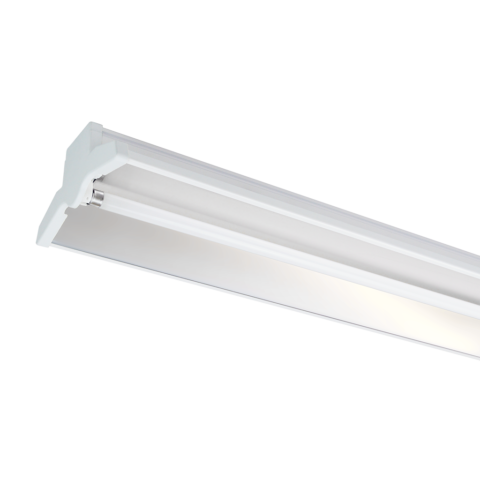

LINE – 1X T5 Linear Fluorescent Fixture

We designed the LINE® Linear fluorescent type luminaire to provide focal light for production areas and aisles such as markets.
Textile – leather workshops, markets and production lines, etc. in areas such as max. 3.3mt. With the option of reflector sheet and reflective aluminum reflector to provide focus and homogeneous lighting from a height,
We designed it with an aluminum extrusion body to provide durability against effects such as oxide and rust for many years.
The product is 3 meters. We have enriched it with transition apparatus so that it can be attached as a single piece and end-to-end and can be applied linearly without limit (see: Product Accessories)

Usage Areas

Materials / Finishes

Materials / Finishes
Body Aluminum Extrusion profile.
Reflective reflector Anodized Aluminum, Ultra pure 99.8% brightness. (optional).
Reflector sheet 0.7mm DKP electrostatic paint coating.

Product Mounting Details

Product Mounting Details
Mounting Surface Surface mounted
Mounting Type Stainless steel ceiling mount or pendant rod in various optional lengths.

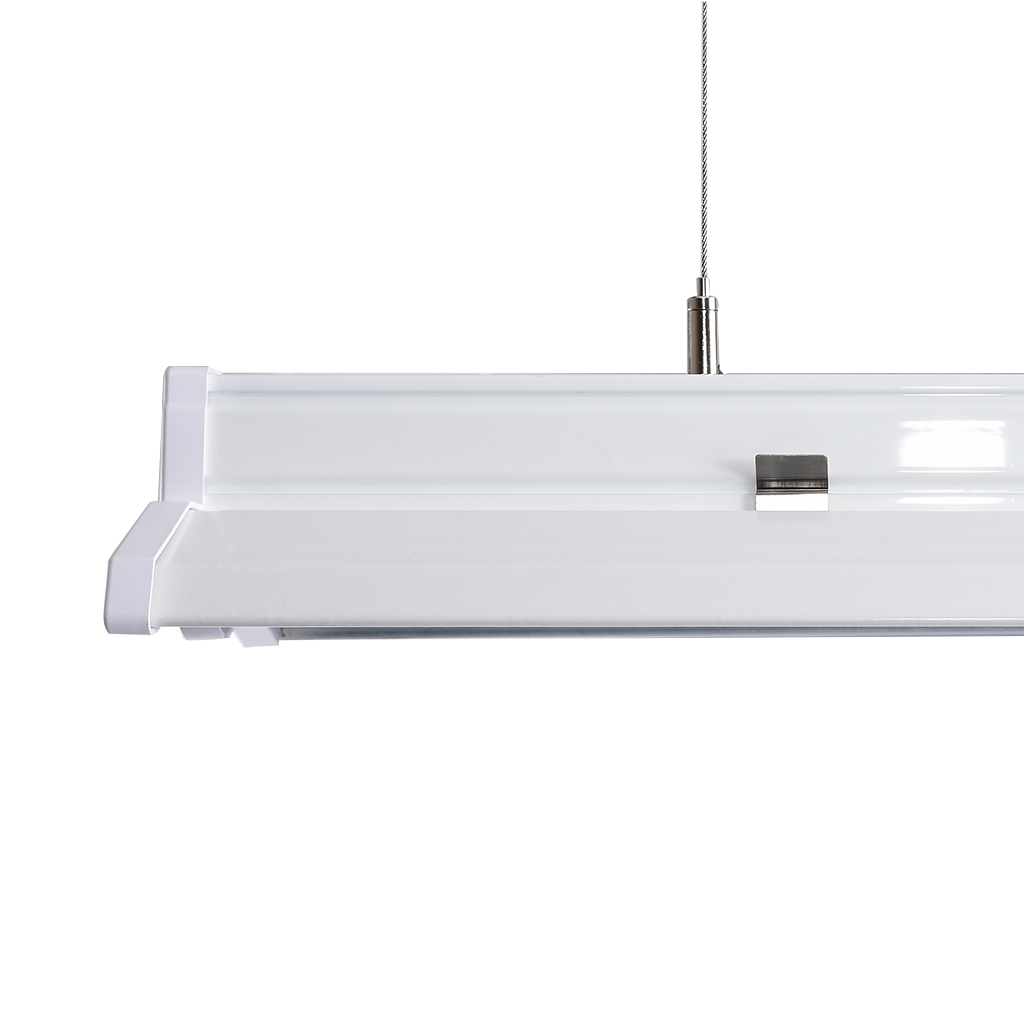

Mounting accessories Stainless spring steel ceiling bracket or Adjustable steel wire hanger (TIJ) (optional).
Mains Connection 3x (optional 4x or 4+2) NYAF and single-phase grounding terminal.

Electrical Equipment

Electrical Equipment
Light Source OSRAM or Philips T5 Fluorescent Tube Bulb.
Automation Mains input can be controlled by panel or external control modules.
Emergency Lighting EMERGENCY KIT with internal 1-3 hours battery (optional)
Driver-Balast Electronic Ballast (EVG)
Sensor Motion sensitive, sound sensitive trigger sensors (optional)
DALI - DIMM not applicable.

Product Labels

LINE – 1X T5 Linear Fluorescent Fixture Accessories

Dimensions - Technical Drawings LINE – 1X T5 Linear Fluorescent Fixture Light Curves

Check out the details that explain what you can do from this data.


LINE – 1X T5 Fluorescent Lighting Fixture

We provide luminance (IES) curves for each luminaire on our website.
The light curve graphically shows how the light diffuses into the space.
The light source is located at the center of the system (ie in the polar area of the graph).
When the fixture assembly is symmetrical about the vertical axis (such as circle-round, square), we create only one density distribution curve in a vertical plane.
So the red color appears, when the Armature assembly is not symmetrical, we add a blue curve to the graph.
The blue curve shows how the light source shines with a 90 degree movement against the initial position.
When measuring the luminaire inside the source axis, we measure the plane C90-C270; when measuring the light axis vertically, we measure the plane C0-C180.

LINE – 1X T5 Linear Fluorescent Fixture
  • The given brightness values are measured by Goniophotometer.
  • In the KARMA laboratory (compared to accredited organizations)
  • we measure our luminaires ourselves and record the luminaire output (.IES/.LDT).
  • So you can be sure that the luminaire illuminates as shown.
30-305021X21 W875x175x75 mmT5-TL52,8 Kg
30-305041X28 W1175x175x75 mmT5-TL53 Kg
30-305061X35 W1475x175x75 mm√ T5-TL53,4 Kg
30-305071X49v1475x175x75 mmT5-TL53,4 Kg
30-305091X80v1475x175x75 mmT5-TL53,5 Kg
30-305102x(1x35) W2950x175x75 mmT5-TL54,8 Kg
30-305132x(1x49) W2950x175x75 mm√ T5-TL54,8 Kg
30-305142x(1x80) W2950x175x75 mmT5-TL54,8 Kg
30-305152X21 W2950x175x75 mmT5-TL5
30-305172X28 W2950x175x75 mmT5-TL5
30-305192X35 W2950x175x75 mmT5-TL5
30-305222x49 W2950x175x75 mmT5-TL5
30-305242X80v2950x175x75 mmT5-TL5
30-305252X(2X35)v2950x175x75 mmT5-TL5
30-305272X(2X49) W2950x175x75 mmT5-TL5
30-305282X(2X80) W2950x175x75 mmT5-TL5

You may want to review these products;

This product/s: Communiqué on energy labeling of light sources (2019/2015/EU) (sgm:2021/12), Communiqué on environmentally friendly design requirements of light sources and separate control equipment (2019/2020/EU) ( In accordance with sgm:2021/11), it has been deemed appropriate for our Company to REMOVE IT FROM PRODUCTIONbefore the scope of the notification, and to produce alternative and more efficient products Products” You can choose it by getting professional support from the section or the contact section.
