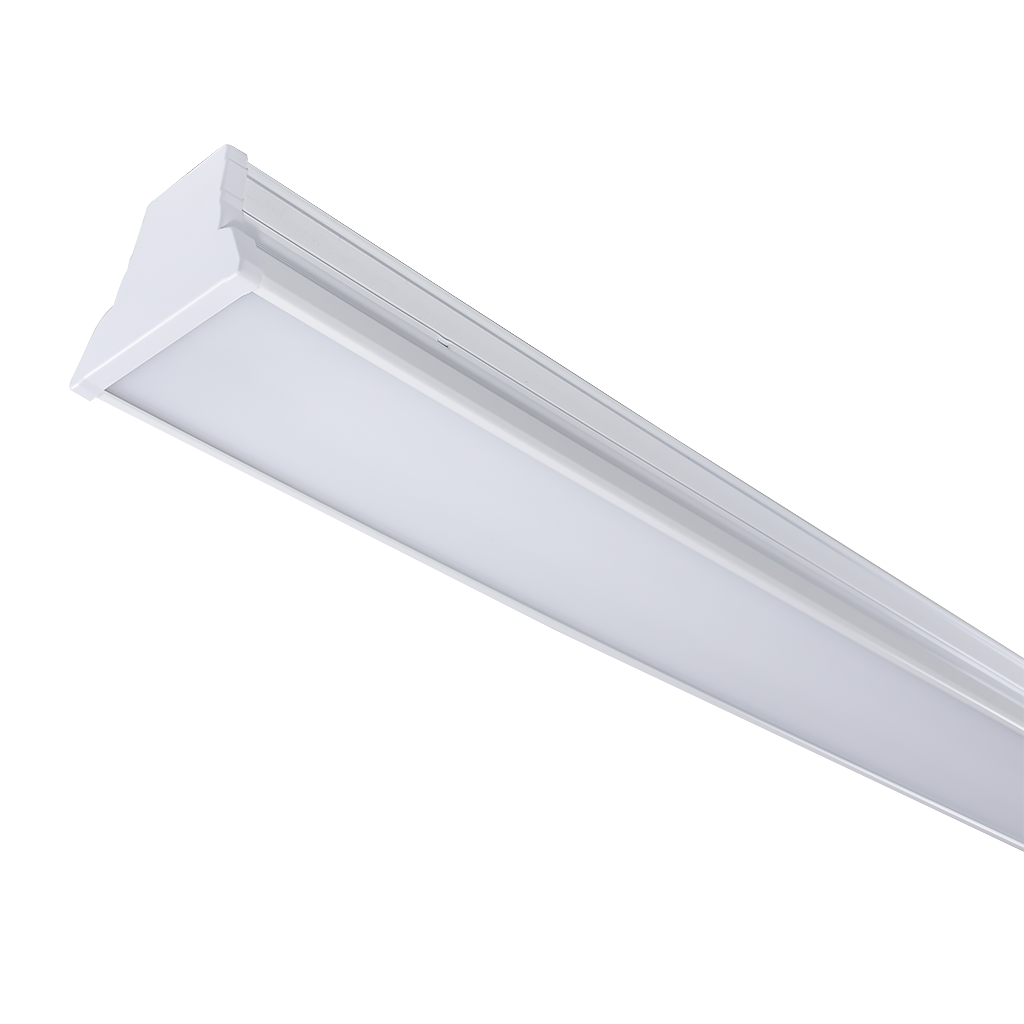

FLAT – 1X Linear T5 Fluorescent Armature with Diffuser

We designed the fluorescent type luminaire of the FLAT 1x® model product family to meet modern lighting expectations.

Office, Store-Market etc. We have brought a modern and sheltered appearance in areas to a continuous linear line with the Diffuser-lens and adorned it with the IP40 feature.

The product is 3 meters. We have enriched it with transition apparatus so that it can be attached as a single piece and end-to-end and can be applied linearly without limit (see: Product Accessories)

We used Diffuser-Lens for indoor lighting to protect eye health and filter harmful rays (Ultraviolet, Gamma, etc.) for warehouse areas.

Usage Areas

Materials / Finishes

Materials / Finishes
Body Aluminum Extrusion profile.
Reflector Anodized Aluminum, Ultra pure 99.8% brightness. (optional).
Diffuser-Lens Opal or Clear laminated Polycarbonate (PC).

Product Mounting Details

Product Mounting Details
Mounting Surface Surface mounted
Mounting Type Stainless steel ceiling mount or pendant rod in various optional lengths.
Mounting accessories Stainless spring steel ceiling bracket or Adjustable steel wire hanger (TIJ) (optional).
Mains Connection 3x (optional 4x or 4+2) NYAF and single-phase grounding terminal.

Electrical Equipment

Electrical Equipment
Light Source OSRAM or Philips T5 Fluorescent Tube Bulb.
Automation Mains input can be controlled by panel or external control modules.
Emergency Lighting EMERGENCY KIT with internal 1-3 hours battery (optional)
Driver-Balast Electronic Ballast (EVG)
Sensor Motion sensitive, sound sensitive trigger sensors (optional)
DALI - DIMM DALI and DIMM cannot be used.

Product Labels

FLAT – 1X Linear T5 Fluorescent Armature with Diffuser Accessories

Dimensions - Technical Drawings FLAT – 1X Linear T5 Fluorescent Armature with Diffuser Light Curves

Check out the details that explain what you can do from this data.


FLAT – T5 Fluorescent Armature with 1X Diffuser

We provide luminance (IES) curves for each luminaire on our website.
The light curve graphically shows how the light diffuses into the space.
The light source is located at the center of the system (ie in the polar area of the graph).
When the fixture assembly is symmetrical about the vertical axis (such as circle-round, square), we create only one density distribution curve in a vertical plane.
So the red color appears, when the Armature assembly is not symmetrical, we add a blue curve to the graph.
The blue curve shows how the light source shines with a 90 degree movement against the initial position.
When measuring the luminaire inside the source axis, we measure the plane C90-C270; when measuring the light axis vertically, we measure the plane C0-C180.

FLAT – 1X Linear T5 Fluorescent Armature with Diffuser
  • The given brightness values are measured by Goniophotometer.
  • In the KARMA laboratory (compared to accredited organizations)
  • we measure our luminaires ourselves and record the luminaire output (.IES/.LDT).
  • So you can be sure that the luminaire illuminates as shown.
30-306001X21875x100x80Opal - ŞeffafT5-T161,3
30-306021x281175x100x80Opal - ŞeffafT5-T161,6
30-306041x351475x100x80Opal - ŞeffafT5-T162,2
30-306061x491475x100x80Opal - ŞeffafT5-T162,2
30-306081x801475x100x80Opal - ŞeffafT5-T162,3
30-306102x(1x35)2950x100x80Opal - ŞeffafT5-T164,1
30-306122x(1x49)2950x100x80Opal - ŞeffafT5-T164,1

You may want to review these products;

This product/s: Communiqué on energy labeling of light sources (2019/2015/EU) (sgm:2021/12), Communiqué on environmentally friendly design requirements of light sources and separate control equipment (2019/2020/EU) ( In accordance with sgm:2021/11), it has been deemed appropriate for our Company to REMOVE IT FROM PRODUCTIONbefore the scope of the notification, and to produce alternative and more efficient products Products” You can choose it by getting professional support from the section or the contact section.
